FEATURES

Sory teller & educati on purpose / home theater / personal theater Video Game display.

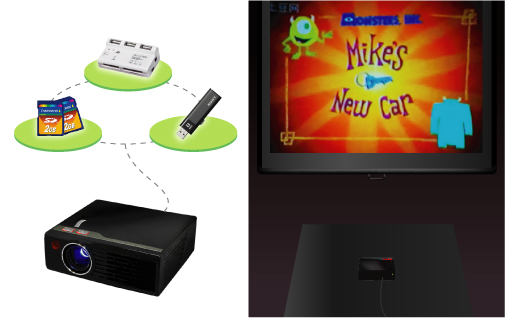

SD CARD port configuration support SD Card up to 16GB easily operation & installation.
Support various program formats:flv asf wmv mp4 mpeg rm jpeg.
USB jack port support Internet downloading of FLV format.
PAL / NTSC AVi compatible support DVD player, embedded 2W x 1 speakers.
Projection distance 5.0M maximum image to about 150 inches.
Speedy turn on/off, LED lamp light source extreme long life span up to 30,000 hrs.
Native resolution: 800H x 600V

Includes connectors for USB, Computer, Lptop, DVD player, PS2, WII, XBox, AV, digital camera, PDA mobile phone, MP4 and PSP.

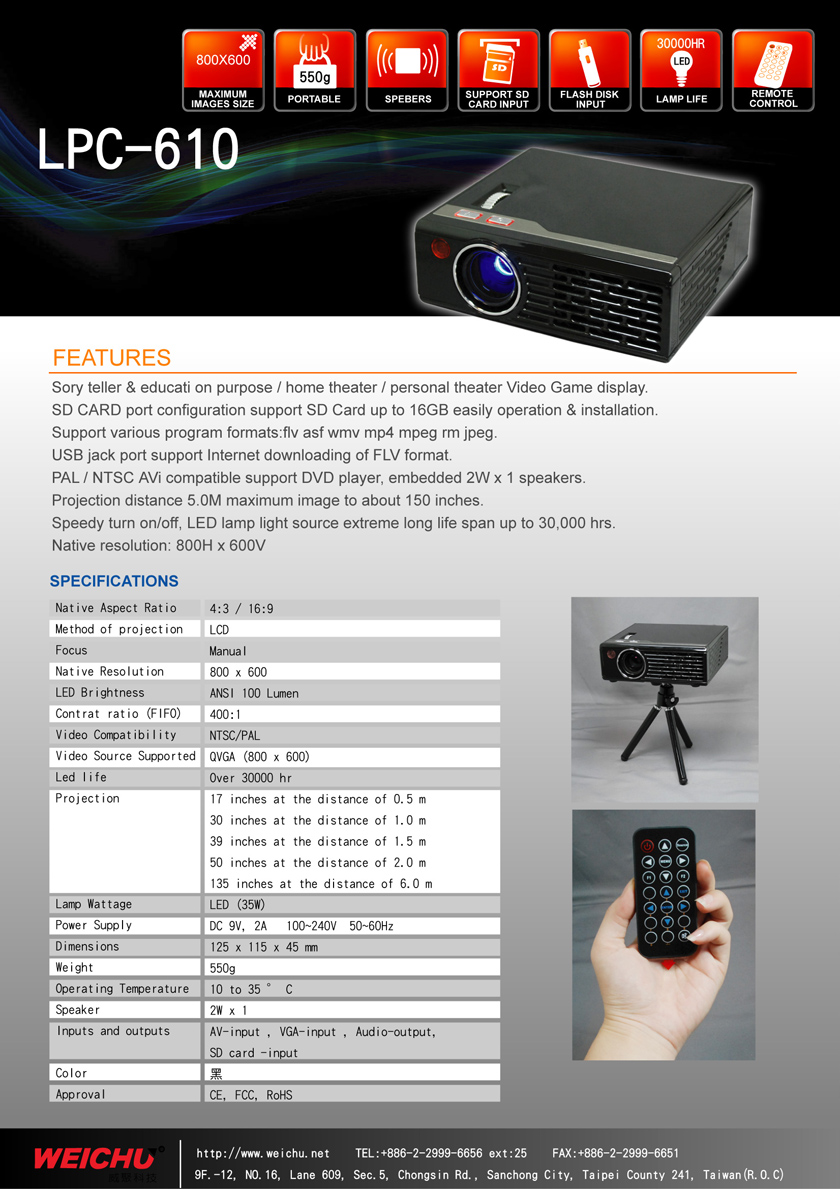

EDM (Click for large image)

SPECIFICATIONS

Native Aspect Ratio
4:3 / 16:9
Method of projection
LCD
Focus
Manual
Native Resolution
800 x 600
LED Brightness
ANSI 100 Lumen
Contrat ratio (FIFO)
400:1
Video Compatibility
NTSC/PAL
Video Source Supported
QVGA (800 x 600)
Led life
Over 30000 hr
Projection

17 inches at the distance of 0.5 m
30 inches at the distance of 1.0 m
39 inches at the distance of 1.5 m
50 inches at the distance of 2.0 m
135 inches at the distance of 6.0 m

Lamp Wattage
LED (35W)
Power Supply
DC 12V, 1.5A                                                    100~240V  50~60Hz

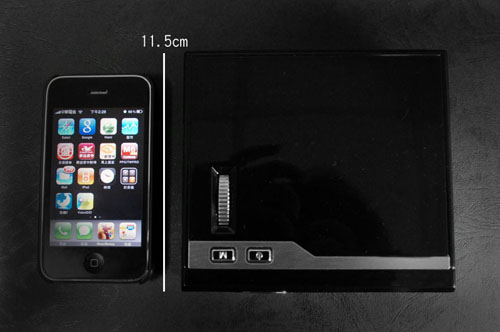

Dimensions
125 x 115 x 45 mm
Weight
550g
Operating Temperature
10 to 35 ° C
Speaker
2W x 1

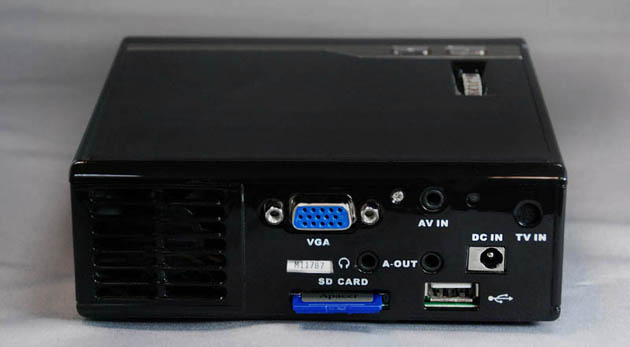

Inputs and outputs
AV-input , VGA-input , Audio-output,SD card -input
Color
black
Approval
CE, FCC, RoHS
