FEATURES

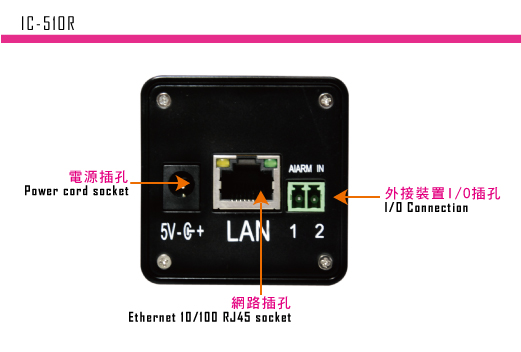

‧GPIO connector for alarms, or trigger items. supports Smart Phone

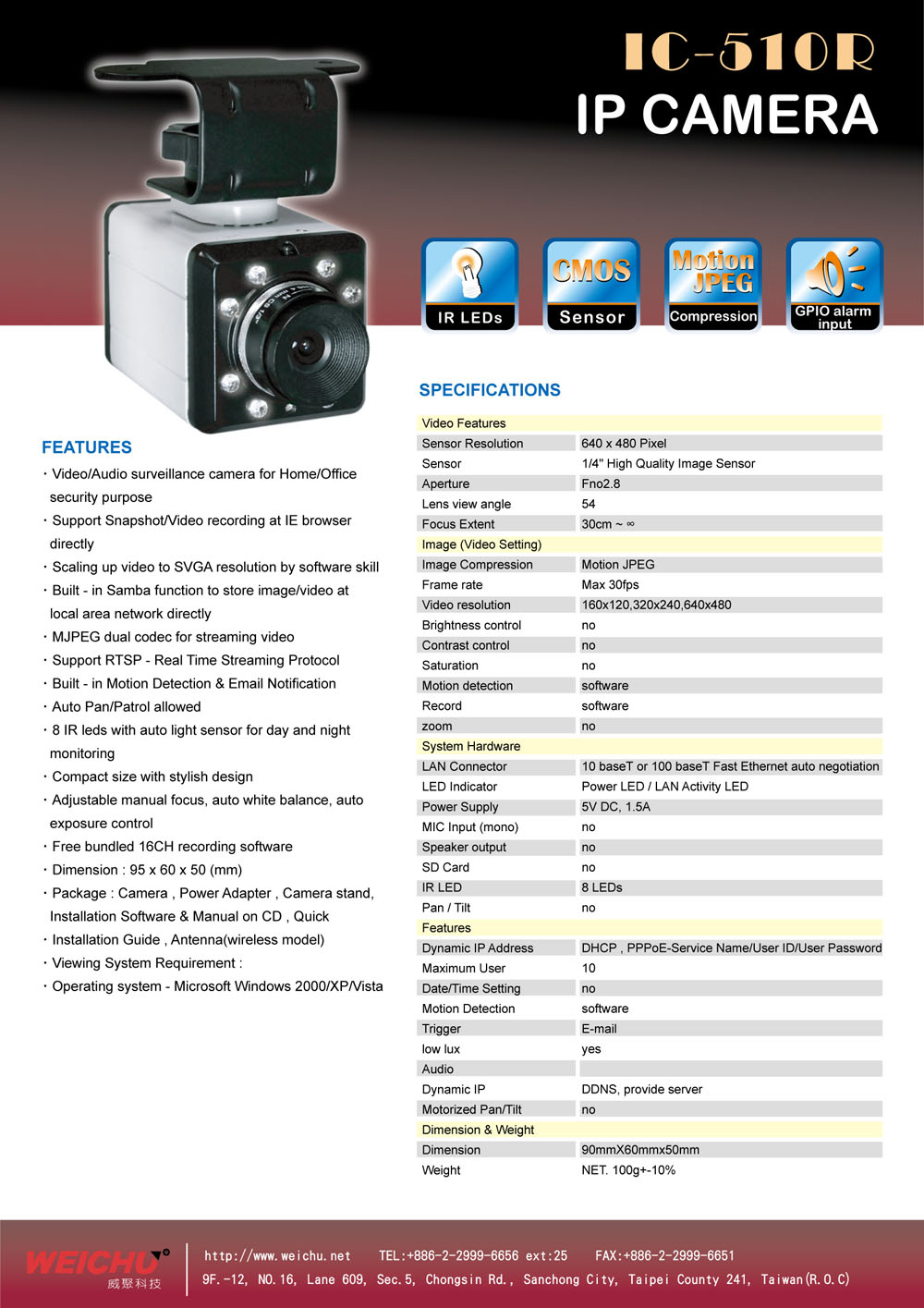

EDM (Click for large image)

SPECIFICATIONS (IP/Web cam dual mode)

Video Features
Sensor Resolution
640 x 480 Pixel
Sensor
1/4" High Quality Image Sensor
Minimum illumination
0 Lux use IR LEDs
Gain Control
auto
Exposure
auto
White Balance
auto
Focal Length
Aperture
Fno2.8
Lens view angle
54°
Focus Extent
30cm ~ ∞
Image (Video Setting)
Image Compression
Motion JPEG
Frame rate
Max 30fps
Video resolution
160x120,320x240,640x480
Brightness control
no
Contrast control
no
Saturation
no
Record
Software
Audio

Internal Microphone (mono)
Non-Build-in
Speaker

output
no
System Hardware
LAN Connector
10 baseT or 100 baseT Fast Ethernet auto negotiation
LED Indicator
Power LED / LAN Activity LED
Power Supply
5VDC 1.5A
MIC Input (mono)
no
Speaker output
no
SD Card
no
IR LED
8 IR LEDs
Pan / Tilt
no
Communication Support

communication
10Mbps / 100Mbps auto-sensed
Mobile Surveillance
yes
communication protocol
TCP/IP、UDP/IP、HTTP、DNS、DHCP、DDNS
Features

Dynamic IP Address
DHCP , PPPoE-Service Name/User ID/User Password
Maximum User
4
Date/Time Setting
no
Motion Detection
no
Trigger
E-mail
low lux
yes
Dynamic IP
DDNS, provide server
Motorized Pan/Tilt
no
System

RAM
8M
Flash ROM
1M
Operating environment

Operating temperature
Temperature : 5℃ ~ +40℃ ( 41F~104F)
Humidity
Humidity : 5% ~ 85% RH
EMI

FCC / CE
FCC / CE
Dimension & Weight

Dimension
95 x 60 x 50 (mm)
Weight
NET. 100g
